EVS Draught Seal

Stop the draught

Older homes with character timber windows that can look nice, but have gaps that reduce their effectiveness. There are many gap filling foam seals on the market, they are only short term solutions. EVS has developed a range of unique, easy to fit, retro seals made from aerated PVC that look and feel like timber.  Pre-finished in white or timber and fitted with quality seals for a durable and lasting result that meets the requirements of the Healthy Home Standards.

EVS Draught Retro Seal
Older timber windows and doors can be upgraded to Healthy Home Standards to prevent draughts by installing EVS Draught Stops. These are made of areated PVC which looks and feel like timber but with the added benefits of being weather proof, and pre-finished as timber or white and can be fitted to most windows and doors as a permanent long term solution.

EVS Super flex weather seal

Perfect on stop solution that is easy to fit and keeps the weather out. Long flexible brush can glide over uneven surfaces
More info

EVS draught stop for timber door surrounds.

Wide span profiles that can cover gaps up to 20mm with durable v-seal, provides an ideal solution for doors.
More info

EVS Multi Seal for Windows and Doors

Multi Seal is a great all-round solution that provides easy installation and a flat face for mounting hardware. Has the option for both side or end seal configurations.
More Info

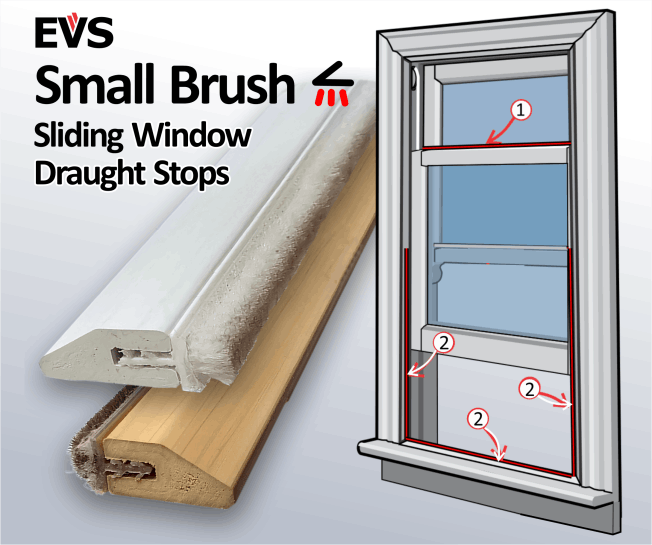

EVS Sliding Sash Window draught stops

Double Hung windows are now quick and easy to seal against draughts and rattles with EVS low-profile fur-seals that provide a lasting solution
More Info

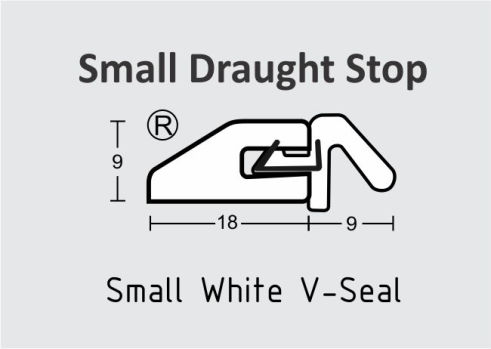

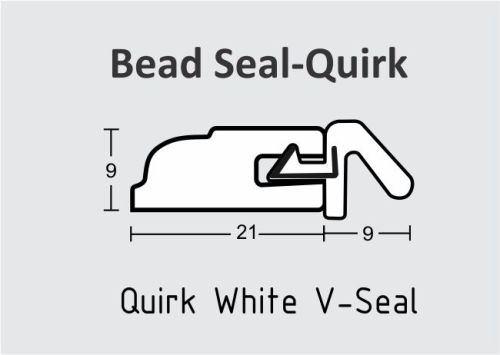

EVS slim-line draught stops for casement windows.

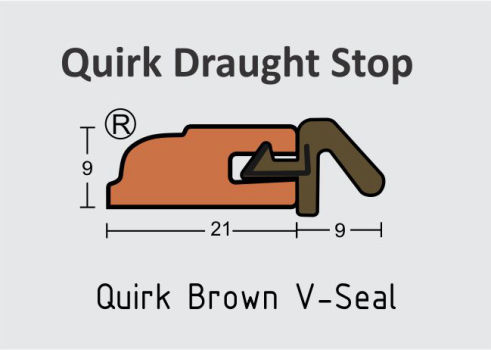

EVS provides a low profile fitted seal that is ideal for windows. The beveled or Quirk design offers a professional prefinished design that can be fitted to gaps up to 10mm.
More Info

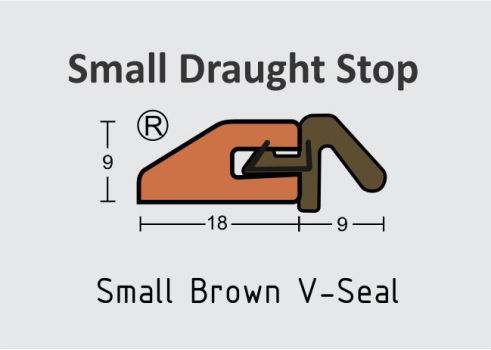

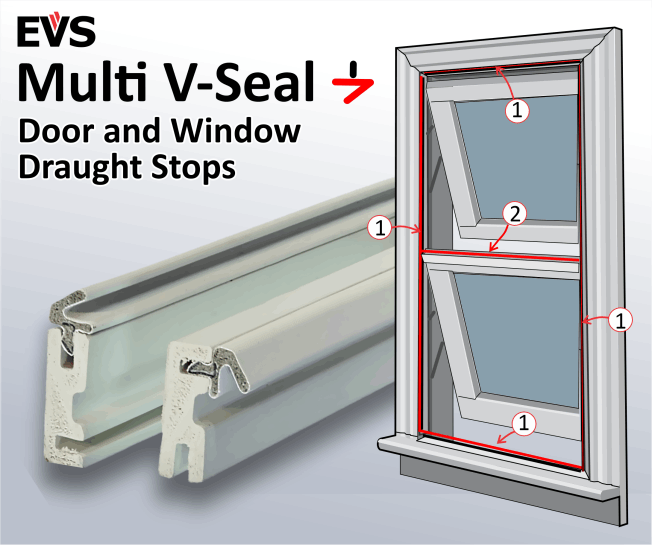

Multi Seal Draught Stop
for Windows and Doors

Character windows can suffer from draughty gaps that can now be easily fixed with the low
profile V-Seal that can span gaps up to 10mm.   The timber finish looks attractive and can fit within most narrow window frames.

EVS Draught Seal


-All new EVS Multi Seal is a versatile draught stop that is easy to install and fits a wide variety of window and door applications.

-EVS Multi Seal can be configured with its two slot options with end or side mounted options that can be used on a wider variety of applications.



EVS Draught Seal

Draught Stop for timber windows

-The EVS Multi Seal's flat faced wide profile can easily be cut without needing to miter join as well as having more room to mount hardware.

EVS Draught Seal

Draught Stop for timber windows

-EVS Multi Seal profile is made from durable aerated PVC that is pre-finished or can be painted to match existing colours.
-EVS Multi Seal V-Seal is made from highly durable polyethylene with a foam core and film skin that can easily mould into gaps.

EVS Draught Seal

Draught Stop for timber windows

Fitting existing hardware requires careful repositioning to ensure the mechanisms work correctly. It is recommended that you use a drill to pre-bore the screw holes to avoid cracking the Draught Stop profile.

EVS Draught Seal

Draught Stop for timber windows

-EVS Multi Seal can be pinned, nailed or double sided tape, for a permanent fixing.
-EVS Multi Seal is supplied in 5 lengths at 2.1m packs making it ideal for use on a variety of common sized windows and doors.

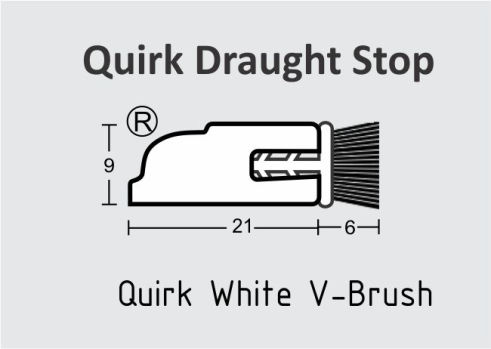

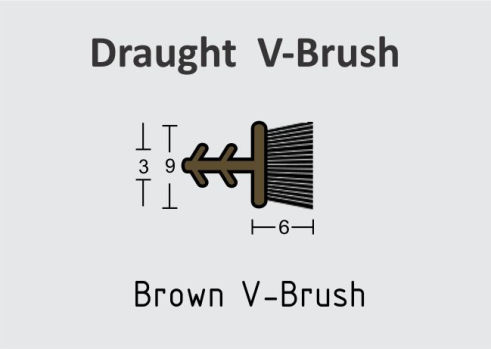

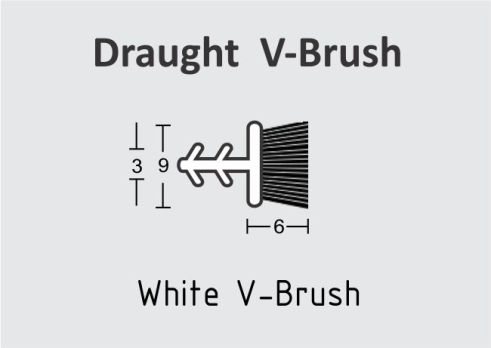

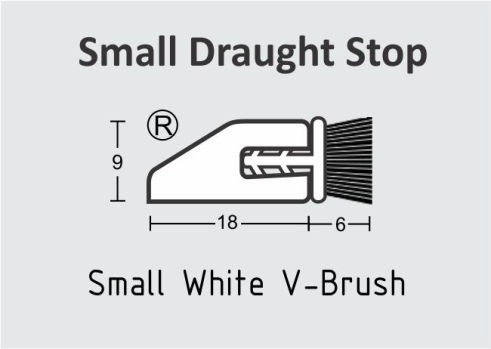

V-Brush Draught Stop for Double Hung Windows

Double hung windows have been one of the most difficult windows to stop draughts until now, with a simple and effective long lasting solution

EVS Draught Seal

-Stops Draughts
-Easy to install
-Long lasting
-Pre-finished
-Moisture proof
-Noise reduction
-Interior/Exterior
-Attractive low profile
-White or timber finish
-Fits around hardware
-Pin/Cut/Sand/Fill/Paint

EVS Draught Seal

Double Hung Windows

Double Hung windows are designed to slide up and down and require a gap on each side for the sash to move freely. The EVS V-Brush works ideally to allow for sling movement while blocking the gaps from draughts.

EVS Draught Seal

Double Hung Windows

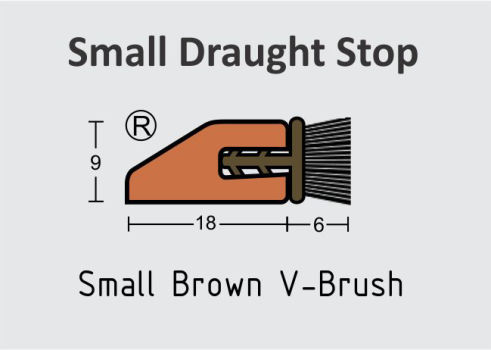

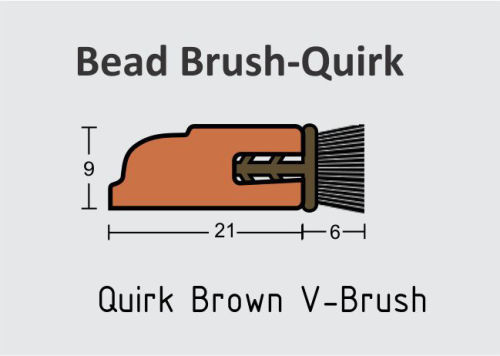

The Draught Stop profiles are narrow and can fit on most standard double hung staff beads (inside facing trim beads). They can be taken the full way up each side for aesthetic reasons
of trimmed to the height o f the bottom panel.

EVS Draught Seal

Double Hung Windows

The EVS Draught Stops have a low visual impact and can be colour matched to the existing colour for best results

EVS Draught Seal

Double Hung Windows

The sides and bottom (3),(4),(5) draught stop can be simply fitted along each facing bead, whereas the top Draught Stop can be fitted in a couple of different configurations (1), (2)depending on where the cross bar sits

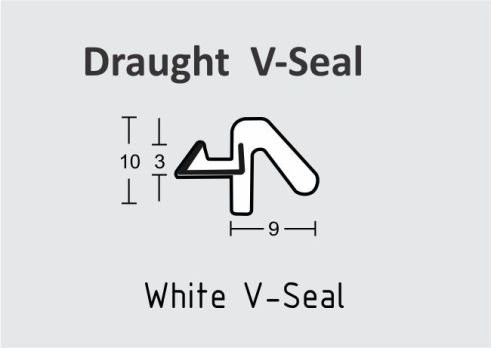

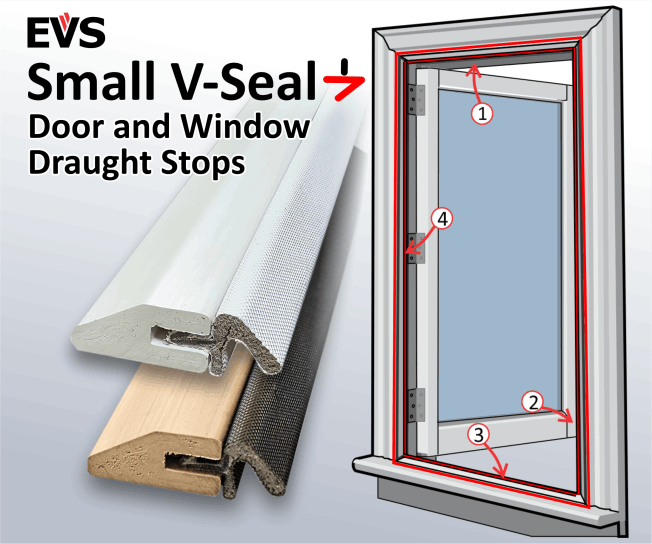

Window V-Seal Draught Stops

Character windows can suffer from draughty gaps that can now be easily fixed with the low
profile V-Seal that can span gaps up to 10mm.   The white pre-finish can be left as-is or painted to match the existing colours.

EVS Draught Seal


-Stops Draughts
-Easy to install
-Long lasting
-Pre-finished
-Moisture proof
-Noise reduction
-Interior/Exterior
-Attractive low profile
-White or timber finish
-Fits around hardware
-Pin/Cut/Sand/Fill/Paint

EVS Draught Seal

Draught Stop for paint finished windows

The white finish is a very common finish for a lot of homes but this can be painted over to match existing paint colour schemes. It is recommend that you use a low sheen water based enamel paint. You can use standard fillers to fill the pin holes and corners.

EVS Draught Seal

Draught Stop for paint finished windows

The white finish is not a surface veneer like other products, so it can be sanded and shaped like timber with the colour elements flowing through the whole profile.

EVS Draught Seal

Draught Stop for paint finished windows

Fitting existing hardware requires careful repositioning to ensure the mechanisms work correctly. It is recommended that you use a drill to pre-bore the screw holes to avoid cracking the Draught Stop profile.

EVS Draught Seal

Draught Stop for paint finished windows

Draught stop can be fitted to all the inside faces of the window frame, but be aware that the bottom rail will have the lip of the profile (3)
across the bottom opening window sil.

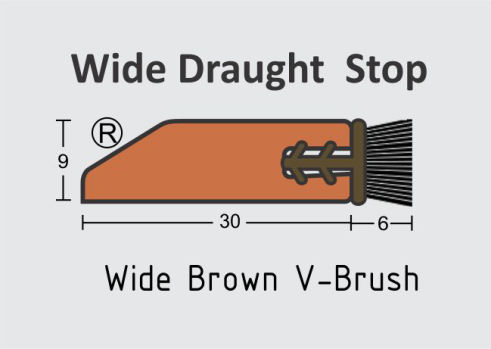

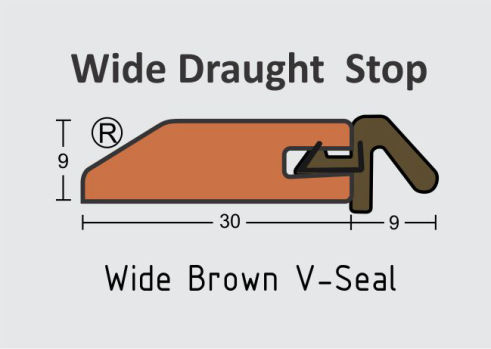

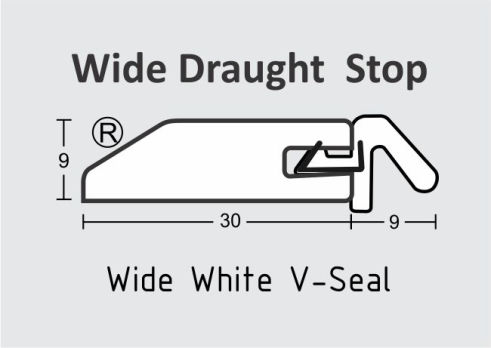

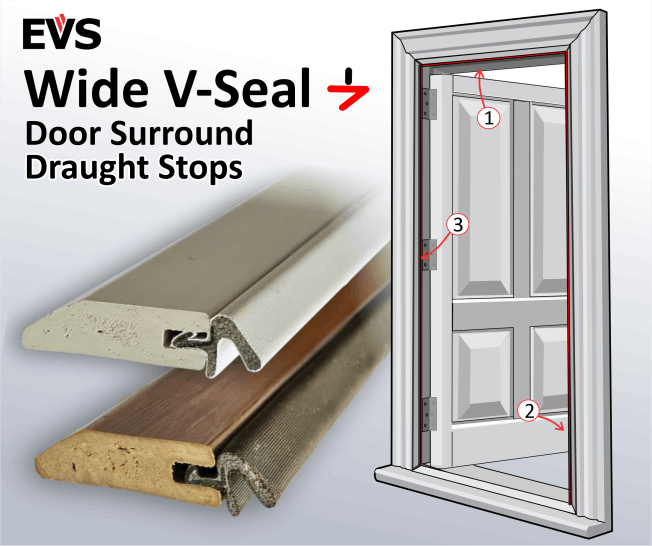

Wide V-Seal Draught Stop
for Doorways

Character doorways can suffer from draughty gaps that can now be easily fixed with wide span V-Seal. The wide span can fill gaps up to 15mm while looking non-obtrusive with its attractive low profile.

EVS Draught Seal

-Stops draughts
-Easy to install
-Long lasting
-Pre-finished
-Moisture proof
-Noise reduction
-Interior/Exterior
-Attractive low profile
-White or timber finish
-Fits around hardware
-Pin/Cut/Sand/Fill/Paint

EVS Draught Seal

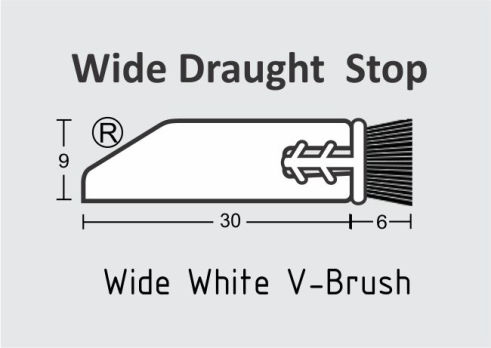

EVS Draught Stop For Doorways

Doorways can have larger gaps owing to hinges sagging and doors twisting, so it is recommended that you use the wider options of EVS Draught Stop with a larger capacity to cover wider gaps

EVS Draught Seal

EVS Draught Stop For Doorways

You can remount door hardware onto the new Draught Stop or fit the Draught Stop around the hardware. Handles sit clear of the 9mm wide profile.

EVS Draught Seal

Retro Glazing Top Awning

The EVS Draught Stop is made from PVC and can be used in external as well as internal positions to act as a weather stop.

EVS Draught Seal

EVS Draught Stop For Doorways

It is recommended that you use EVS Draught Stop around the sides and top only, as it may get damaged if used along the bottom threshold.

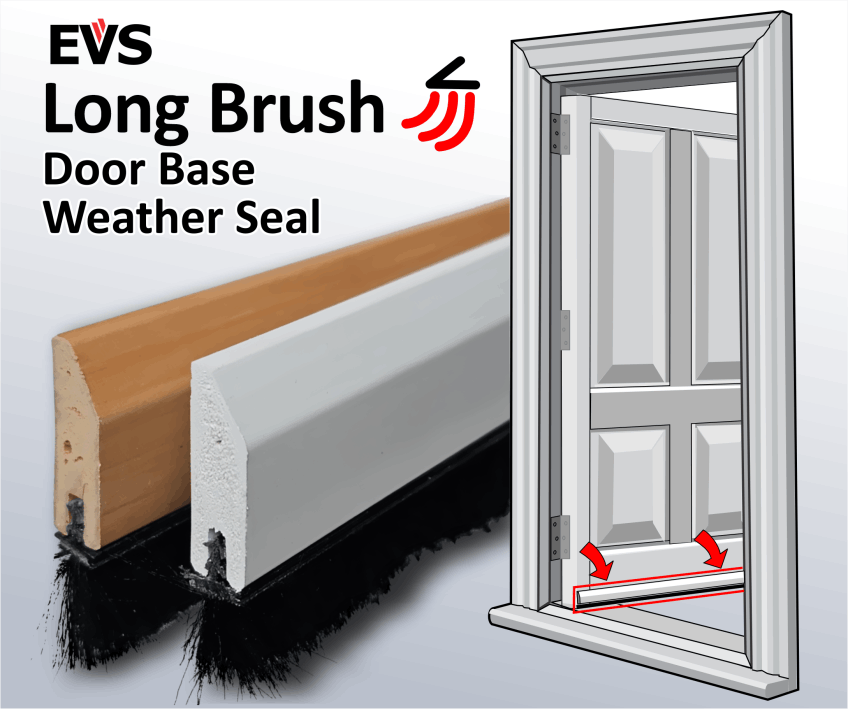

Door Super Flex
Weather Seal

Perfect on stop solution that is easy to fit and keeps the weather out. Long flexible brush can glide over uneven surfaces

EVS Draught Seal

All new EVS Flexi Weather Seal is designed as a simple one stop solution for a door base, rather than needing different options to solve different door gap problems.
-Stops weather
-Easy to install
-Long lasting
-Pre-finished
-Moisture proof
-Noise reduction
-Interior/Exterior

EVS Draught Seal

Keeps weather Out

EVS Flexi Weather Seal is fitted with a long flexible brush that can easily transform over different surfaces while maintaining a good seal against draughts and weather.

EVS Draught Seal

Timber grain pre-finished

EVS Flexi Weather Seal has 20 mm gap clearance to open and close the doors over uneven thresholds and tapering floors.

EVS Draught Seal

White pre-finished

EVS Multi Seal can be pinned, nailed or double sided tape, for a permanent fixing.

EVS Draught Seal

Gentle on carpets and rugs

EVS Flexi Weather Seal is the perfect solution for thresholds that open over carpets or rugs without damaging them.

Sales or service contact details

EVS Draught stops are available throughout New Zealand and can also be purchased online.

Exceed Fix Windows and Doors

Exceed has a network of skilled Technicians that cover most of New Zealand and provide friendly helpful advice and service for installing your EVS draught seals

Visit their web site and request a quote. www.exceed.co.nz

PlaceMakers Building Supplies

Selected PlaceMakers stores provide the builders packs of Draught Seals and soon will be offering the DIY packs. If they are not in stock we can get them in usually within a week.

Contact your local store and ask about EVS Draught seals.

EVS Window Technology

EVS is based in Otago and can offer Dunedin and Central Otago customers Draught Stop installation and supply. EVS can provide advice on how to install your Draught stops

Contact us if you want a price or advice.  sales@evsdraughtstop.nz

Buy Draught Stops online

You can buy EVS Draught stops online. There is a wide range of options from DIY packs that come with adhesive backing, through to builders packs that provide larger quantities at cheaper prices.

Structure and Materials – Polyurethane Foam Seals

Polyethylene (PE) film – weather and UV-resistant
Polyurethane (PU) foam core – high durability, superior recovery performance
Polypropylene (PP) co-extruded insert – prevents elongation and shrinkage, easy installation.

Durable, UV Resistant polyethylene cladding bonded to resilient urethane foam for outstanding sealing against air and water infiltration. Superior appearance, easy operation, easy cleaning, outstanding durability, energy efficient. Smooth or embossed exterior, resistant to contamination. Compatible with cleaning agents.


-Compression deformation test: 70% compression rate of 50% under continuous compression 22 hours, deformation rate ≤ 10%
-Compression test, at 25% of the compression rate, the impose 15N / 100mm force, the compression rate ≤ 10N
-Temperature range test: from -40 ºC to 90 ºC no significant change in sealing performance
-Heat conduction K value test: 0 ºC K value ≤ 0.035W / m2K
Fatigue test: imitate the window switch 500,000 times, no significant change in shape
Sound insulation test: only with the intermediate tape IV68 windows, drop noise 43 dB
Outdoor anti-aging test: the current has reached more than 20 years, the performance remains intact

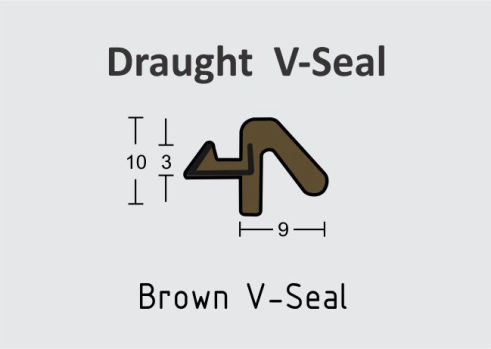

V-Seal and V-Brush Draught Stop


Healthy Homes Draught Stopping Standard
Landlords must block any unreasonable gaps and holes in walls, ceilings, windows, floors and doors that cause noticeable draughts.

As a rule of thumb, gaps or holes with a width greater than 3mm in or around the walls, ceilings, windows, doors and floors that let air into or out of the home will usually require blocking to prevent unreasonable draughts.

This means that if the edge of a New Zealand $2 dollar coin can fit in the gap, then the gap needs to be sealed.

For an in-depth booklet on Draught Stopping Standards
Also some industry advice about how Property investors should deal with the new Rules around Healthy Homes by Dave Wade

Tenancy Guide Lines for Draughts
